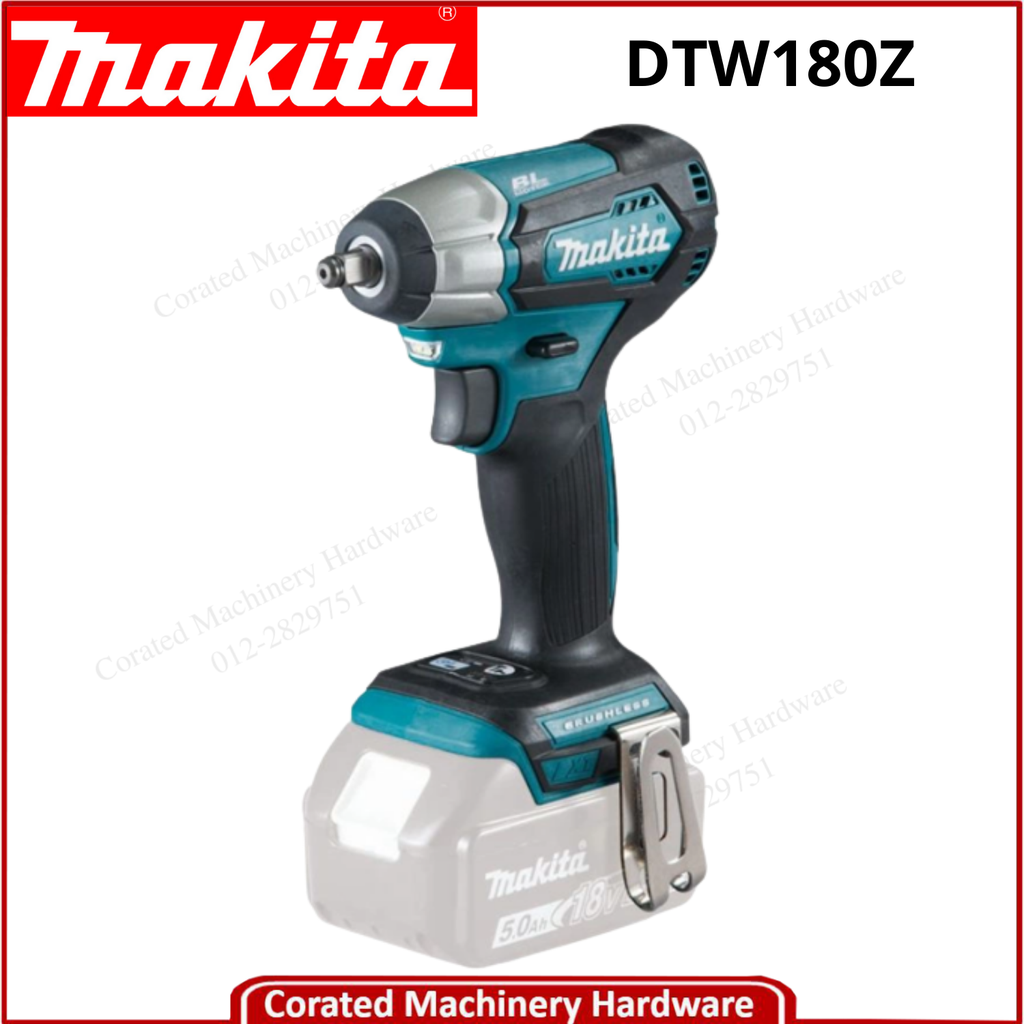

Product Specification
Brand
MAKITA
Barcode
DTW180Z
Model
DTW180Z
Local Manufacture Warranty
1 YEAR
Product Description
FEATURES
- Reverse Rotation Auto-Stop Mode stops in 0.2 seconds after the bolt/nut loosened enough
- Variable 2-speed (0-1,300/0-2,400 RPM & 0-2,000/0-3,600 IPM) provides fastening control for a wide range of applications
- Dual LED lights with preglow and afterglow functions illuminate the work area
- Convenient 3/8" (9.5 mm) square drive for quick socket changes
- Electric brake for increased operator safety
- Reversing switch is conveniently located
SPECIFICATION
| Fastening Capacities | Standard Bolt: M8 - M16 (5/16" - 5/8") High Tensile Bolt: M6 - M12 (1/4" - 1/2") |
| Square Drive | 9.5 mm (3/8") |
| Nut-Busting Torque | 310 N·m (228 ft.lbs.) |
| Impacts Per Minute (IPM) | Hard: 0 - 3,600 | Soft: 0 - 2,000 |
| Max Fastening Torque | 180 N·m (1,590 in.lbs.) |
| No Load Speed (RPM) | Hard: 0 - 2,400 | Soft: 0 - 1,300 |
| Dimensions (L x W x H) | With BL1815N / BL1820B: 144 x 79 x 218 mm (5-5/8" x 3-1/8" x 8-5/8") With BL1830B / BL1840B / BL1850B / BL1860B: 144 x 79 x 235 mm (5-5/8" x 3-1/8" x 9-1/4") |
| Net Weight | 1.2 - 1.5 kg (2.7 - 3.4 lbs.) |
Standard Equipment | |
