Product Specification
Brand
HERO
Local Manufacture Warranty
1 YEAR
Product Description

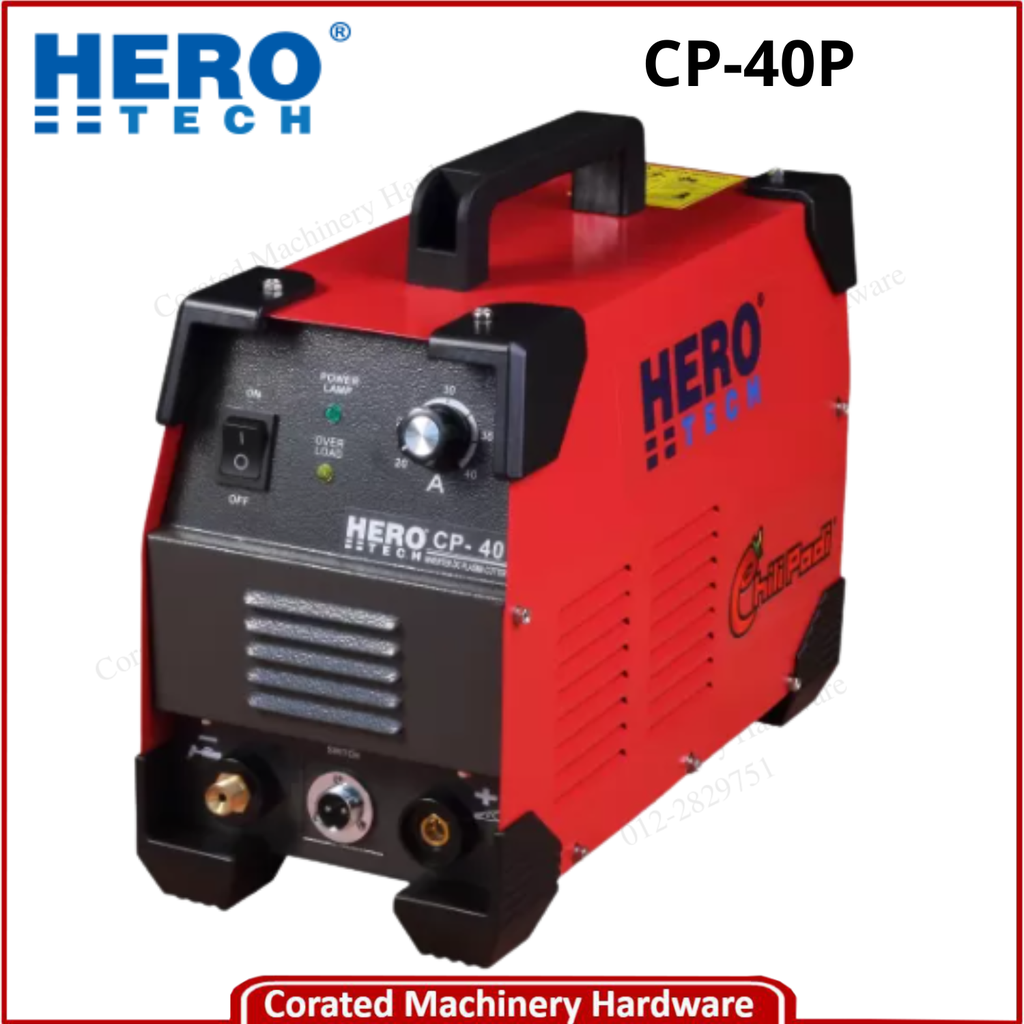

PLASMA SERIES
Feature:
- Increased cutting capacity, compared with oxy-acetylene cutting, cutting speed increased 1.8 times.
- Effective and economical cutting capacity both in speed and thickness
- Able to cut stainless steel, carbon steel, alloy steel, copper, aluminium and etc.
- Users low-cost compressed air
- Optional professional cutting torch, improve cutting ability more than twice
- Digitally-controlled inverter power for constant output
| Specifications | UNIT | CP-40 | CUT-70 |
| Input Voltage | VAC | 220, 1Ø, 50/60Hz | 415, 3Ø, 50/60Hz |
| Rated Voltage | % | ±15 | ±15 |
| Rated Input Power | KVA | 4.8 | 11 |
| Rated Duty Cycle | % | 60 | 60 |
| Efficiency | % | 80 | 85 |
| Power Factor | % | 64 | 93 |
| Output Current | ADC | 20 - 40 | 20 - 60 |
| Output Voltage | VDC | 96 | 108 |
| Open Circuit Voltage | VDC | 265 | 240 |
| Air Flow | M / min | 0.12 - 0.15 | 0.25 |
| Air Pre-Flow | SEC | 0.1 | 0.1 |
| Max. Cutting Thickness | MM | 12 | 25 |
| Perfect Cutting Thickness | MM | 6 | 12 |
| Control | - | STANDARD | STANDARD |
| Arc Starting | - | Contact Starting | No-contact arc starting |
| Insulation Class | LEVEL | B | B |
| IP Rating | LEVEL | IP21S | IP23 |
| Dimension (W*D*H) | MM | 500*300*390 | 650*330*430 |
| Weight | KG | 13 | 24 |
